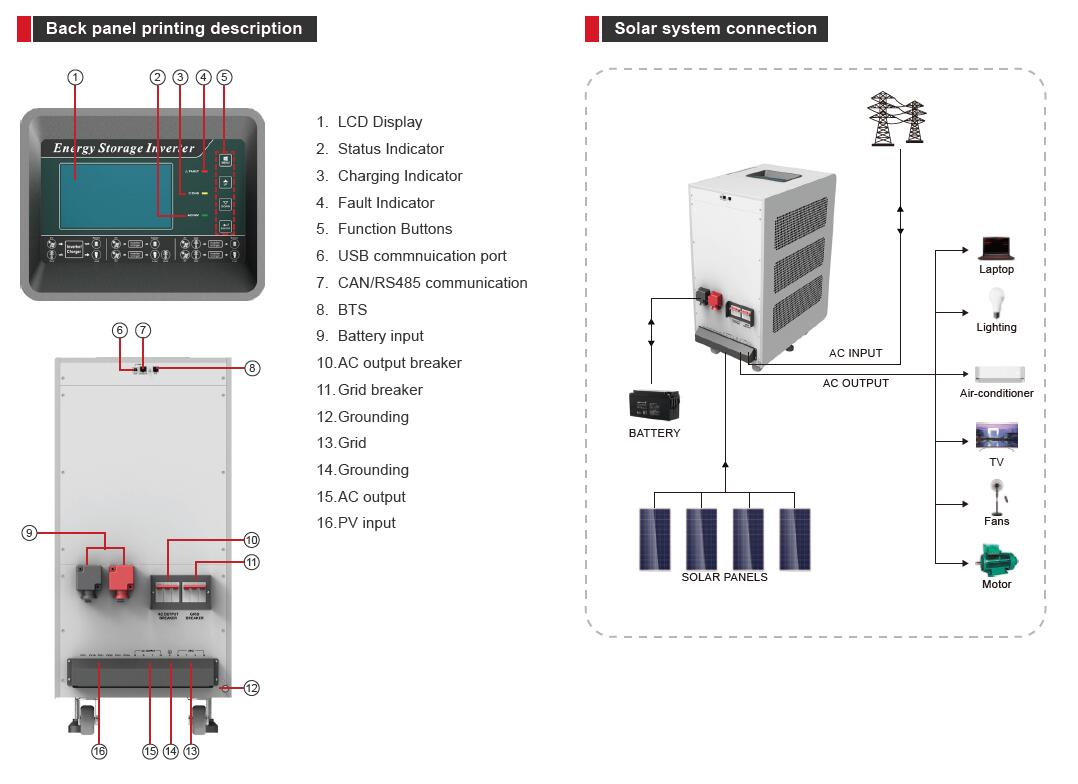

Description
■ Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
■ Built-in MPPT 180A solar charge controller
■ MPPT Efficiency max 98%
■ Combining solar system, AC utility, and battery power source to supply continuous power
■ Multiple operations: basic Grid-tie, Off-Grid, Grid-Interactive
■ Support CAN, RS485 monitoring function
| MODEL | PH30-10048-T | PH30-12048-T |
| Nominal Battery System Voltage | 48VDC | |
| INVERTER OUTPUT | ||
| Rated output power | 10000W | 12000W |
| Output wave | Pure sine wave | |
| Nominal output voltage | 230 VAC (P-N) / 400 VAC (P-P) | |
| Nominal output current | 14.3A per phase | 17.4A per phase |
| Nominal output frequency | 50 Hz / 60 Hz | |
| Rate of wave distortion(THD)(Linearity loads) | Off grid≤2%; Grid discharge ≤3%; Grid charge ≤3% | |
| Peak efficiency | ≥93% | |
| Overload capability | 100%<load≤110%,30 minutes; 110%<load≤125%,1 minutes; 125%<load≤150%,30 seconds; load<150%,10 seconds; Short circuit,5 seconds | |
| AC INPUT | ||
| AC input maximum current | 26.0A per phase | 34.8A per phase |
| Nominal frequency | 50Hz / 60Hz | |
| Acceptable input voltage range | Defaults 186Vac ~253Vac per phase;Narrow 174Vac ~272Vac per phase; Wide 95Vac ~272Vac per phase |
|
| BATTERY | ||
| Type of Battery | Lithium battery or lead-acid battery | |
| Nominal Voltage | 48VDC | |
| Low Voltage Protection Point | Charger 34.0VDC; Inverter 40.0VDC | |
| Absorption Voltage | 50.0VDC | |
| Refloat Voltage | 54.8VDC | |
| Float Voltage | 57.2VDC | |
| SOLAR CHARGER & AC CHARGER | ||
| PV Open Circuit Voltage | 145VDC | |
| Max Solar Charging Current | 60A per channel | |
| Max AC Charging Current | 60A per phase | 80A per phase |
| Max Charging Current | 120A per phase | 140A per phase |
| MECHANICAL SPECIFICATIONS | ||
| Mounting | Floor installation | |
| Machine Dimension (W*H*D)(mm) | 392*828*629 | |
| Package Dimension (W*H*D)(mm) | 513*1031*700 | |
| N.W(kg) | 128 | 140 |
| G.W(kg) | 133 | 160 |
| OTHER | ||
| Communication terminal | RS485 / CAN bus | |
| Operating Temperature Range | 0℃ ~ +50℃ | |
| Environmental Protection Rating | IP20 | |
| Ambient humidity | 0 — 90% relative humidity (non-condensing) | |
| Altitude | ≤2000m | |
| CERTIFICATION & STANDARDS | ||
| EN IEC62368-1 CE-LVD (EN IEC62109-1, EN IEC62109-2) Rohs-(2011/65/EUand2015/863/EU) CE-LVD (BS IEC62109-1:2010, BS EN IEC62109-2:2011) UKCA |
||
