LP1900 Series (51.2V-400Ah)

LiFePO4 Battery 20480 Wh

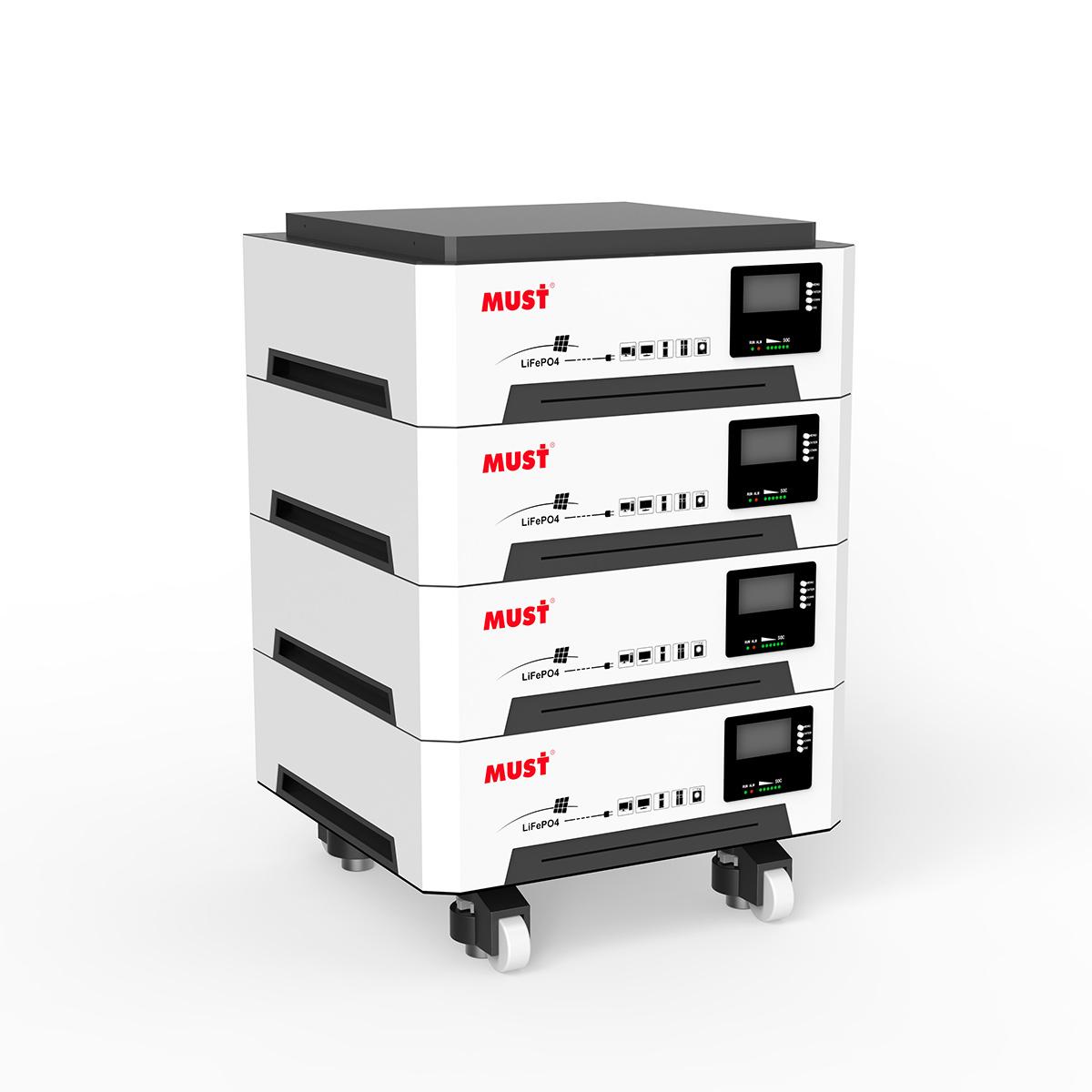

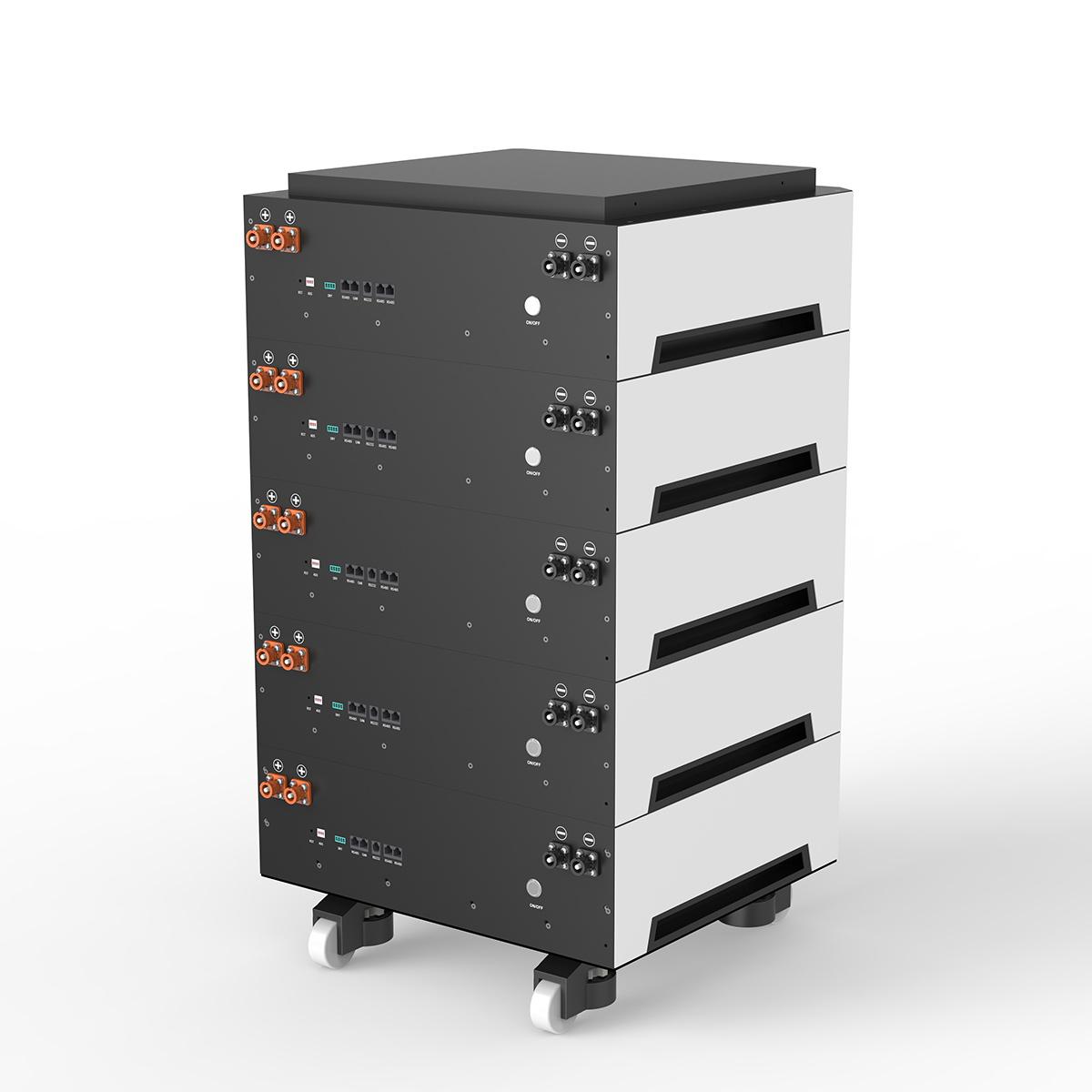

MUST LP1900 Series is a lithium iron phosphate battery that offers multiple energy storage options through an expandable modular design (3-5 modules combined), which further simplifies installation and O&M with multiple smart functions.

Model Certification & Standards
LP19-48400 CE-EMC(EN 61000-6-3: 2007+A1: 2011+AC: 2012 EN IEC 61000-6-1: 2019)
Description

Description

FEATURES:

High cycle life

6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost.

Longer service life

Low maintenance batteries with stable chemistry.

Built in circuit protection

Battery Management System (BMS) is incorporated against abuse.

Better storage

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

Specification:

MODEL LP19-48400
Nominal Voltage 51.2V
Nominal Capacity 400 Ah
Nominal energy 20480 Wh
Life Cycles 6000 Cycles (25℃, 80% DOD)
Recommended Charge Voltage 57.6V
Recommended Charge Current 80A
End Of Discharge Voltage 44.0V
Standard Method Charge 80A
Discharge 100A
Maximum Continuous Current Charge 100A
Discharge 100A
BMS Cut-Off Voltage Charge 58.4 V (3.65V/Cell)
Discharge 44.0V (2s) (2.75V/Cell)
Temperature Charge -4 ~ 113 ℉ (0 ~ 45℃ )
Discharge -4 ~ 131 ℉ (-20 ~ 55 ℃ )
Storage Temperature 23~95 ℉ (-5~35℃ )
Shipment voltage ≥51.2V
Module Parallel Up to 8 units

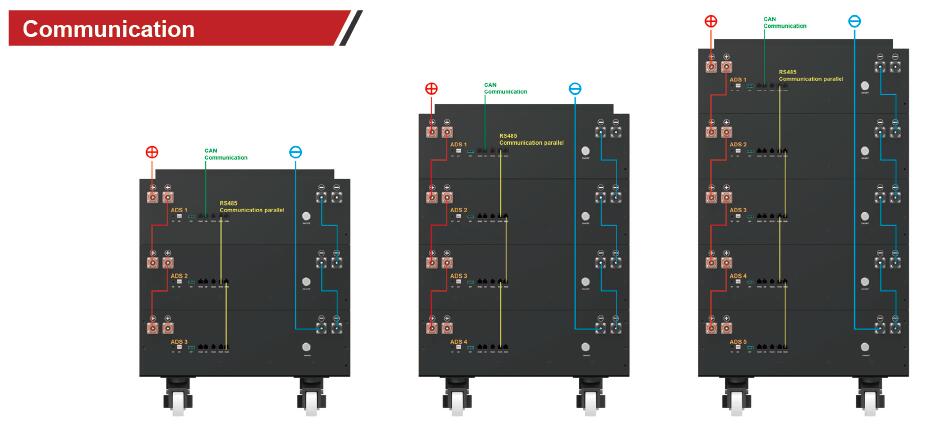

Communication CAN2.0/RS232/RS485
Case Material SPPC
Dimension (L x W x H) 537 x 498 x 815 mm

21.0 x 19.6 x 32”

Approx. Weight 429.90 lbs (195 kg)
Charge Retention And Capacity Recovery Capability Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
