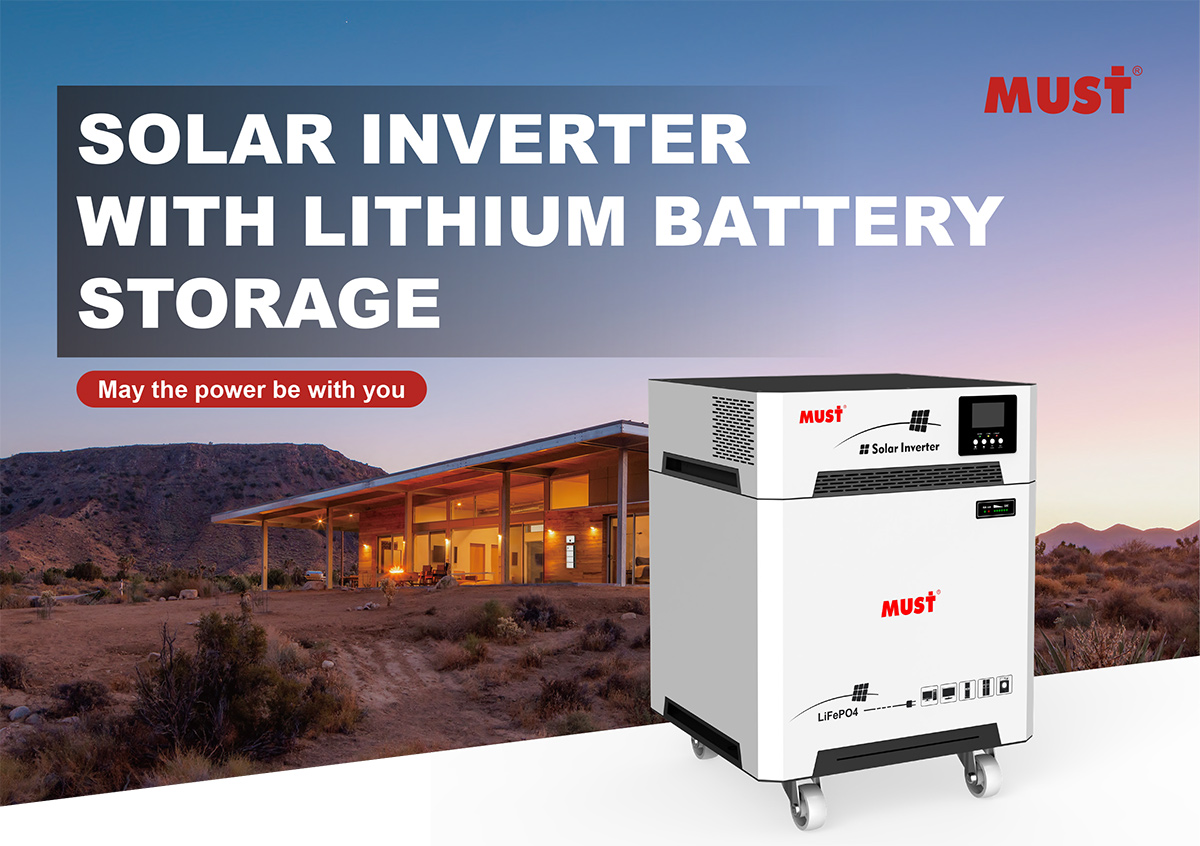

HBP1800 LV Series (AC:120V 3KW)

All in One Home Solar Energy Storage System (AC:120V) 12800Wh

HBP1800 LV energy storage system ESS solution, including 3kw 48vdc solar inverter and a lithium battery storage with 9.6kwh energy optional. it is a onestop service system can manage your solar home battery storage system more conveniently. Flexible modular system can be designed based on house daily consumption.
The perfect emergency energy solution for villas, apartments, hotels, shopping centers.

Description

Description

■ Stacked movable energy storage systems
■ Rechargeable lithium batteries use safe lithium cell LiFePO4
■ The intelligent BMS system adopts the latest battery communication system
■ Reduce electricity bills and increase your energy needs for electrical self-sufficiency.

MODEL HBP18-3048 LV
INVERTER
Rated power 3000W
Output voltage waveform Pure sine wave
Output voltage regulation (100Vac-120Vac)±5%
Output frequency 50Hz or 60Hz (±0.2Hz)
Peak efficiency 93%
Nominal DC input voltage 48Vdc
Standby Consumption <25W
PV INPUT
Max solar power input 3000W
PV max charging current 80A
Combined charging current 140A
Max efficiency 98.0% max
PV array open circuit voltage 250Vdc
PV Array MPPT Voltage Range 60~200Vdc
AC INPUT
AC input voltage 120Vac ±5%
Acceptable input voltage range 90~145VAC(UPS), 60~145VAC(APL), 107~132VAC(VDE4105)
Nominal input frequency 50Hz / 60Hz (Auto detection)
Transfer time 10ms typical (UPS, VDE); 20ms typical (APL)
AC CHARGE
Charging current @ Nominal input voltage 60A
Charging Algorithm 4-step (Li)
OUTPUT
AC output Terminal
LITHIUM BATTERY
Energy 14336Wh
Nominal voltage 51.2V
Battery capacity 280Ah
Standard charging and discharge current 100A
Maximum continuous charging & discharge current 100A
Operation ambient temperature -10~50°C
Storage ambient temperature -20~55°C
DIMENSION
Machine Dimension (W*H*D)(mm) (Inverter+Battery) 540*715*498
Package Dimension (W*H*D)(mm) Inverter 627*252*585
Battery 630*695*600
N.W(kg) Inverter 17
Battery 115
G.W(kg) Inverter 28
Battery 135
Standard Warranty Inverter: 2 years ; Lithium battery: 5 years
CERTIFICATION & STANDARDS
CE-EMC
