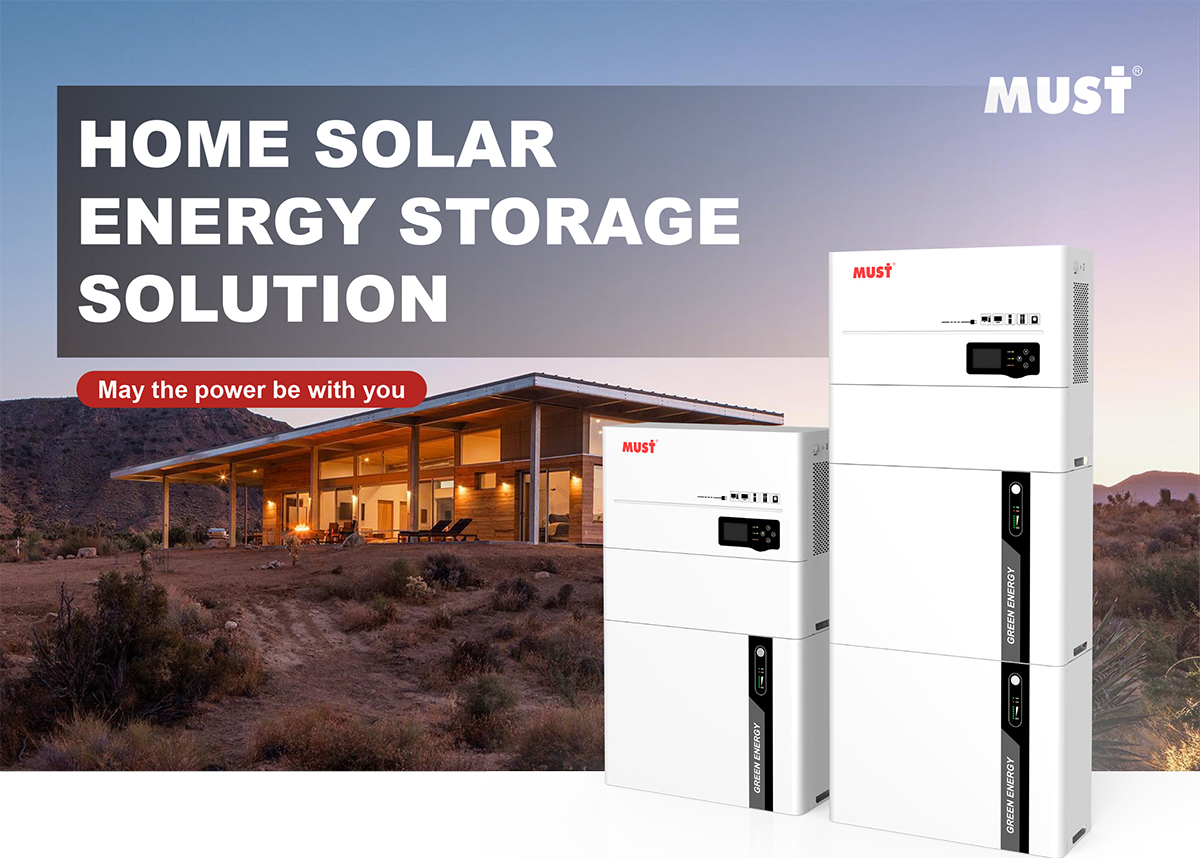

Description
■ Self-consumption and feed-back to the grid
■ Multiple Working Mode: Energy storage mode, load priority mode, power selling mode, and a high-efficiency mode
■ “Time of use” function: a maximum of 6 time segments can be set
■ Inside BMS,support to be charged and discharged according to bms requirements
■ Support to connect with generator
■ Automatic line-to-battery switch over
| MODEL | HBP18-3524 ES | HBP18-5548 ES | |
| Nominal Battery System Voltage | 24VDC | 48VDC | |
| INVERTER OUTPUT | |||
| Rated Power | 3500VA / 3500W | 5500VA / 5500W | |
| Waveform | Pure Sine Wave | ||
| Nominal Output Voltage RMS | 230V | ||
| Output Voltage Regulation | +10/-18% | ||
| Output Frequency | 50Hz / 60Hz ± 0.5Hz | ||
| Inverter Efficiency (Peak) | >93% | ||
| Typical Transfer Time | <10ms , 15ms max | ||
| AC INPUT | |||
| Voltage | 230VAC | ||
| Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) | ||
| Frequency Range | 50Hz / 60Hz (Auto sensing) | ||
| BATTERY | |||
| Note: Below Parameters base on one LiFePO4 Lithium Battery Modular | |||
| Battery | 25.6VDC 200AH 5120/10240Wh | 51.2VDC 100AH 5120/10240Wh | |
| Low Battery Cutoff | 22.4DC | 44.8DC | |
| Low Battery Alarm | 23.4DC | 46.8VDC | |
| Low Battery Voltage Recover | 24.4VDC | 48.8VDC | |
| High Voltage Alarm | 29.0VDC | 58.0VDC | |
| High Battery Voltage Recover | 29.6VDC | 59.2VDC | |
| SOLAR CHARGER & AC CHARGER | |||
| Maximum PV Array Open Circuit Voltage | 450VDC | ||
| PV Array MPPT Voltage Range | 150~430VDC | ||
| Maximum Solar Charge Current | 100A | 120A | |
| Maximum AC Charge Current | 80A | 100A | |
| Maximum Charge Current | 100A | 120A | |
| Charger Voltage | 28.8VDC | 57.6VDC | |
| Charging Current | 40A ± 2A | 60A ± 2A | |
| Overcharge Protection S.D. | 31VDC | 62VDC | |
| OUTPUT | |||
| AC Output | 230Vac (Terminal) | ||
| BYPASS & PROTECTION | |||
| Nominal Input Frequency | 50Hz or 60Hz | ||
| Circuit breaker | FUSE | ||
| Bypass breaker rating | 32A | 40A | |
| MECHANICAL SPECIFICATIONS | |||
| Machine Dimension (W*H*D)(mm) (Inverter+Battery) | 596*1345*220 | ||
| Package Dimension (W*H*D)(mm) | Inverter | 687*300*680 | |
| Battery (single battery) | 660*285*490 | ||
| N.W(kg) | Inverter | 20 | 22 |
| Battery (single battery) | 48 | 48 | |
| G.W(kg) | Inverter | 22 | 24 |
| Battery (single battery) | 61 | 61 | |
| Standard Warranty | Inverter: 2 years ; Lithium battery: 5 years | ||
| OTHER | |||
| Operating Temperature Range | -10°C to 50°C | ||
| Audible Noise | 60dB MAX | ||
| Display | LED+LCD | ||
| Standard Warranty | 2 year | ||
| CERTIFICATION & STANDARDS | |||
| EN/IEC62109-1, EN IEC62109-2 | |||
