Description
■ Pure sine wave inverter
■ Configurable input voltage range For home appliances and personal computers via LCD setting Configurable battery charging current based on applications via LCD setting
■ Configurable AC Charger via LCD setting
■ Compatible to mains voltage or generator power
■ Auto restart while AC is recovering
■ Overload/Over temperature/short circuit protection
■ Smart battery charger design For optimized battery performance
■ Cold start Function
■ WIFI remote monitoring (optional)

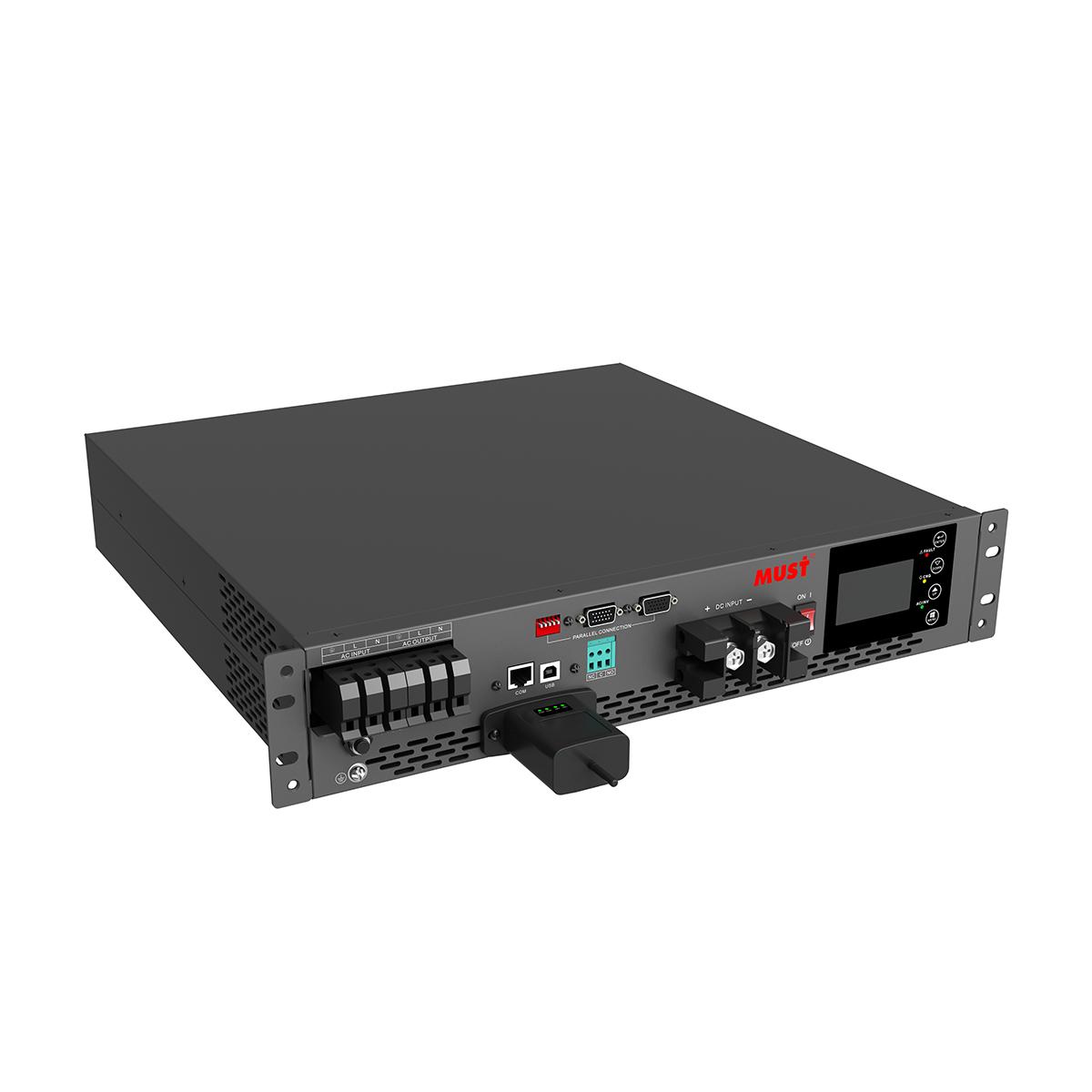

| MODEL | EP50-5248 PRO | |
| Rated output power | 5200VA/5200W | |
| AC INPUT | ||
| Nominal Input Voltage | 230Vac±5% | |
| Selectable Voltage range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) | |
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| Inverter Efficiency(Peak) | 90% | |
| INVERTER OUTPUT | ||
| Output voltage waveform | Pure sine wave | |
| Output Voltage Regulation | 230Vac ± 5% | |
| Output Frequency | 50Hz / 60Hz(Auto sensing) | |
| Power Factor | ≈1 | |
| Transfer Time | 10ms (UPS / VDE4105) / 20ms (APL) （50ms(For parallel operation) | |
| Nominal DC Input Voltage | 48VDC | |
| Cold Start Voltage | 46VDC | |
| Output Short Circuit Protection | Line mode | Circuit Breaker |
| Battery mode | Electronic Circuits | |
| BATTERY | ||
| Battery voltage | 48VDC | |
| Floating voltage | 54.8V | |
| Overcharge Protection | 60V | |
| CHARGER | ||
| Charging Current(UPS) @Nominal Input Voltage | Default:30A; MAX:80A | |
| Bulk Charging Voltage | 56.4Vdc | |
| Floating Charging Voltage | 54Vdc | |
| Charging Algorithm | 3-Step | |
| GENERAL | ||
| Mounting | Rack mount | |
| Display | LED+LCD | |
| Parallel operation | 3 units | |
| Operation Temperature Range | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
| Machine Dimension (W*H*D) | 468*86.3*400mm | |
| Package Dimension (W*H*D) | / | |
| N.W | 11kg | |
| G.W | / | |
| CERTIFICATION & STANDARDS | ||
| CE | ||
