Off Grid Solar Inverter

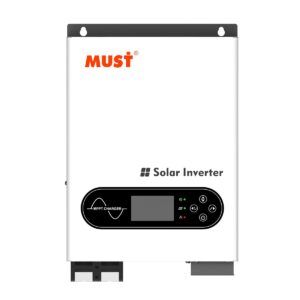

PV1800 ECO Series (1.6-6.2KW)
* High Frequency Inverter
* Cold start | Dual output
* PV 400/450/500V
* DC 12V,24V,48V
High Frequency Off Grid Solar Inverter 1.6~6.2KW | PV 400/450/500V | Dual output | DC 12V,24V,48V
PV1800 ECO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 ECO Series can run without battery.
The Maximum PV input voltage can reach 400V/450V/500V, which can help customers make full use of solar energy.
PV1900 EXP Series (6.2-12KW)
* High Frequency Inverter
* AC/PV lithium battery activation
* Dual output
* PV 500V | MPPT 120/150A
High Frequency solar Inverter DC 48V | PV 500V | 120/150A | Dual output
PV1900 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1900 EXP Series can run without battery. The Maximum PV input voltage can reach 500V and MPPT voltage range is 90~450Vdc, built-in two MPPTs solar charge controller, which can help customers make full use of solar energy.
PV1900 EXP Series (4/6KW)
* High Frequency Inverter
* Cold start | Dual outputs
* DC 24/48V | PV 500V
* MPPT 100/120A
High Frequency solar Inverter 4~6KW | PV 500V | MPPT 100A/120A | DC 24V,48V
PV1900 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1900 EXP Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 150~450Vdc, which Can help customers make full use of solar energy.
PV1800 PREM Series (1.6-5.5KW)
* High Frequency Inverter
* Cold start | Dual output
* DC 12/24/48V | PV 400/450V
* MPPT 80/100A
High Frequency Off Grid Solar Inverter 1.6~5.5KW | PV 400/450V | Dual output | DC 12V,24V,48V
PV1800 PREM is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PREM Series can run without battery. The Maximum PV array open circuit voltage can reach 400V/450V. which Can help customers make full use of solar energy.
PV1800 VPM Ⅱ Series (1-4KW)
* High Frequency Inverter
* PV/ AC activation function
* PV 120/160V | DC 24V
* MPPT 40/60A
High Frequency Off Grid Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, MPPT 40A/60A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers userconfigurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on
different applications.
PV1800 PRO Series (PV:450V 3/5.2KW)
* High Frequency Inverter
* Cold Start Function
* Max Parallel 9 Unit
* DC 24/48V | MPPT 80/100A
High Frequency Solar Inverter 3~5.2KW | PV 450V | DC 24V,48V
PV1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.
PV1800 PRO Series (8-10KW)
* High Frequency Inverter
* Cold Start Function
* PV 450V | DC 48V
* MPPT 80/100A
High Frequency Off Grid Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
| Model | Certification & Standards |
| PV18-8048 PRO, PV18-10048 PRO | Rohs-2011/65/EU, 2015/863/EU |
| PV18-8048 PRO, PV18-10048 PRO | EN IEC62368-1:2020+A11:2020 |
PV3600 PRO Series (8-12KW)
* Low Frequency Inverter
* Compatible to generator
* DC 48V | PV 245V
* MPPT 100/200A
Low Frequency Off Grid Solar Inverter 8~12KW | PV 245V | DC 48V | MPPT 100A,200A
PV3600 PRO series is a multi-function inverter ,combining functions of inverter and MPPT solar charger controller, solar charger and battery charger to offer uninterruptible power support. The comprehensive LCD display offers userconfigurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and selectable input voltage based on different applications.
PV2900 HP Series (1-6KW)
* Low Frequency Inverter
* Dual output
* DC 12/24/48V
* MPPT 80A | PV 245V
Low Frequency Inverter 1~6KW | AC 230V | MPPT 80A | PV 245V
PV2900 HP series is very economical pure sine wave solar inverter, Inbuilt with 80A MPPT charger; Solar/AC priority is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current is too lower, in this way system charge is optimazed best. it enables inverter to operate with all kinds of home appliances.
PV1800 PRO Series (PV:400V 2/3.2KW)
* High Frequency Inverter
* PV/ AC activation
* DC 24V
* MPPT 80/100A
High Frequency Solar Inverter 2~3.2KW | PV 400V | DC 24V
PV1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 400V and MPPT voltage is 60~320Vdc, which Can help customers make full use of solar energy.
PV1100 PLUS Series (1.2-2.4KVA)
* High Frequency Inverter
* DC 12/24V
* PV 55V
* PWM 50A
Simulated Sine Wave Inverter 1.2~2.4KVA | PWM 50A | AC 10A/20A | PV 55V
PV1100Plus is a cost effective , intelligent hybrid off grid solar inverter. The LCD display offers friendly user-configurable button adjustment such as battery charging current, AC/solar charger priority and DC priority. When battery voltage is low, it will automatically switch to AC grid to supply continuous power to the loads. It suitable for personal home use.
PV1300 Series (1-1.5KVA)
* High Frequency Inverter
* Simulated sine wave
* PV 55V | DC 12/24V
* PWM 50A
High Frequency Off Grid Solar Inverter
PV1300 is a cost effective , intelligent hybrid off grid solar inverter with power range 1000VA 1500VA. The LCD display offers friendly user-configurable button adjustment such as input voltage setting, AC/solar charger priority , mute setting. When battery voltage is low, it’s will automatically switch to AC grid to supply continuous power to the loads. It suitable for personal home use.
PV1500 Series (1-2KVA)
* High Frequency Inverter
* Pure Sine Wave
* PV 105V | DC 12/24V
* MPPT 45A
High Frequency Off Grid Solar Inverter 1~2KVA | MPPT 45A | AC 15A/20A | PV 105V
It is a cost effective, intelligent solar inverter which accepts Solar & Utility input at the same time. The comprehensive LCD display offers userconfigurable and easy-accessible button adjustment such as battery charging current, AC/solar charger priority and DC priority.When battery voltage is low,it will automatically switch to AC grid to supply continuous power to the loads.
PV1500 LV Series (AC:120V 1500VA)
* Americas Inverter
* PV 100V
* DC 12/24V
* MPPT 30A
Off Grid Solar Inverter 1500VA | AC 120V | PV 100V
It is a cost efective, inteligent solar inverter which accepts Solar & Utility input at the same fime. The comprehensive lCD display ofers user-conigurable and easy-accessible buton adjustment such as batery charging curent, AC/solar charger priority and DC priority,.When battery voltage islow,it will automatically switch to AC grid to supply continuous power to the loads.
PV1800 VPK Series (1-5KW)
* High Frequency Inverter
* Cold start function
* PV 44-105V | DC 12/24/48V
* PWM 50/60A
High Frequency Off Grid Solar Inverters
PV1800 VPK is a multi-function inverter/charger, combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
| Model | Certification & Standards |
| PV18-1012/2024 VPK | CE-EMC+LVD(EN6100-6-4: 2007, EN6100-6-2:2005+EN IEC62109-1:2010, EN IEC62109-2:2011) |
| PV18-3024 VPK | UKCA |
| PV18-1012/2024/3024 VPK | EN IEC62368-1:2020+A11: 2020 |
| PV18-1012/2024/3024/4048/5048 VPK | CE-LVD(IEC62109-1:2010, EN IEC62109-2:2011) |
| PV18-1012/2024/3024/4048/5048 VPK | CB-(IEC62109-1:2010, IEC62109-2:2011) |
PV1800 VHM Series (2-5.5KW)
* High Frequency Inverter
* Parallel 3 Unit (48V Series)
* PV 145V | DC 24/48V
* MPPT 80A
High Frequency Off Grid Solar Inverter (PV: 145V)
PV1800 VHM is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
| Model | Certification & Standards |
| PV18-2024/3024VHM | CE-EMC+LVD(EN6100-6-4: 2007, EN6100-6-2:2005+EN IEC62109-1:2010, EN IEC62109-2:2011) |
| PV18-3024VHM, PV18-2024VHM | CE-LVD(IEC62109-1:2010, EN IEC62109-2:2011), UKCA |
| PV18-3048/4048/5048 VHM | EN IEC62368-1:2020+A11: 2020 |
| PV18-3048/4048/5048/5548 VHM | CE-EMC+LVD(EN6100-6-3: 2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011) |
| PV18-3048/4048/5048/5548 VHM | CE-LVD(IEC62109-1:2010, EN IEC62109-2:2011), UKCA |
| PV18-3024/5048/5548 VHM | IEC61683: 1999 |
| PV18-2024/3024 VHM | SAA |
| PV18-2024/3024 VHM | CE-LVD(IEC62109-1:2010, EN IEC62109-2:2011) |
PV1800 VHM Series (3-5.5KW)
* High Frequency Inverter
* Parallel 3 Unit
* PV 250V | DC 48V
* MPPT 80A
High Frequency Off Grid Solar Inverter (PV: 250V)
PV1800 VHM is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
PV1800 VM Series (2.5/3KVA)
* High Frequency Inverter
* Cold Start Function
* PV145V | DC 24V
* MPPT 40/60A
High Frequency Off Grid Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, MPPT 60A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
| Model | Certification & Standards |
| PV18-2524/3024 VM | CE-LVD(IEC62109-1:2010, EN IEC62109-2:2011) |
PV1800 LV Series (AC:120V 1-3KW)
* High Frequency Inverter
* Americas Inverter
* PV 145/160/250V | DC 12/24/48V
* MPPT 80A
High Frequency Off Grid Solar Inverter 1~3KW | AC 120V | PV 145V-250V
PV1800 LV Series is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers userconfigurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on
different applications.
PV3300 TLV Series (AC:120V+120V 1-6KW)
* Low Frequency Inverter
* Split Phase Inverter
* PV 100/245V | DC 12/24/48V
* MPPT 80A
Low Frequency Split Phase Solar Inverter 1~6KW | AC 110V/220V | MPPT 80A | DC 12V,24V,48V | PV 100V/245V
This split phase solar inverter PV3300 TLV series, capacity range from 1KW-6KW, DC 12V/24V/48V, it’s applicable to 110VAC/120VAC markets demands, which has AC output of single phase 110VAC/120V, split phase 220V/240V; In LCD display, you can set output voltage, frequency, charging voltage, charging current to design best use based on different loads applications; meanwhile, it has built-in MPPT solar charge controller 80A, you can take use of sunshine freely and save electricity bills.
| Model | Certification & Standards |
| PV33-3048/4024/4048/5048/6048 TLV | CE-EMC+LVD(EN6100-6-3:2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011) |
PV1800 PRO II Series (4/6kW)
* Dual output
* PV 500V (450V for parallel)
* DC 24/48V
* MPPT 100/120A
Dual Output Solar Power Inverter
PV1800 PRO II is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO II Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage range is 90~430V for 4KW, 120v~430V for 6KW, which Can help customers make full use of solar energy.
PV1800 PRO II Series (6.2-12kW)
* Dual output
* PV 500V | DC 48V
* Max 6 Units Parallel
* MPPT 120/150A
Dual Output Inverters
PV1800 PRO II is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO II Series can run without battery. The Maximum PV input voltage can reach 500V and MPPT voltage range is 90~430Vdc, built-in two MPPTs solar charge controller, which can help customers make full use of solar energy.
PV1800 TLV Series (AC:110/220V 6KW)
* Americas inverter
* Split phase inverter
* PV 250V | DC 48V
* MPPT 80A
Off Grid Split Phase Solar Inverter 6KW | AC 120V,240V | PV 250V | DC 48V
This split phase solar inverter PV1800 TLV series, capacity 6KW, DC 48V, it’s applicable to 110VAC/120VAC markets demands, which has AC output of single phase 110VAC/120V, split phase 220V/240V; In LCD display, you can set output voltage, frequency, charging voltage, charging current to design best use based on different loads applications; meanwhile, it has built-in two 80A MPPT solar charge controllers, you can take use of sunshine freely and save electricity bills.
PV2000 PK Series (1-2KVA)
* Low Frequency Inverter
* Cold Start Function
* PV 55/70V | DC 12/24V
* MPPT 50A
Low Frequency Off Grid Solar Inverter 1~2KVA | DC 12V,24V | PWM 50A | PV 55V
PV2000 PK built-in high efficiency solar controller. AC input voltage range for 140VAC-280VAC with regulated output (AVR) features, PV, AC function, A tracking feature such as power frequency. The output frequency can be set using the keys, AC /PV charging voltage, charge current, AC or PV priority mode, Battery under voltage shut-down point, and so many other functions.
| Model | Certification & Standards |
| PV20-1012 PK/1512 PK/2024 PK | CE-EMC+LVD(EN6100-6-4: 2007, EN6100-6-2:2005+EN IEC62109-1:2010, EN IEC62109-2:2011) |
